S58 · 3.0 twin-turbo inline-six

BMW S58 tuning

The S58 is a closed-deck 3.0-litre twin-turbo inline-six. BMW M built it with larger twin-scroll turbos, high-pressure direct injection and upgraded injectors over its predecessor. The architecture has more capacity than the factory tune uses. Conservative boost and fuelling keep it inside a global emissions window. A custom remap changes that.

See the S58 chassis

S58 vehicles

BMW S58 tuning, by model

SamuelTuned covers S58 tuning and remapping across the BMW M2 (G87), BMW M3 (G80 / G81), BMW M3 CS (G80), BMW M4 (G82 / G83), BMW M4 CS (G82), BMW X3 M (F97) and BMW X4 M (F98). Each one gets a custom, individually-calibrated remote ECU remap — Stage 1, Stage 2 and Stage 3. Open the configurator on your car to choose your stage, add the options that fit, and send the full build to Samuel.

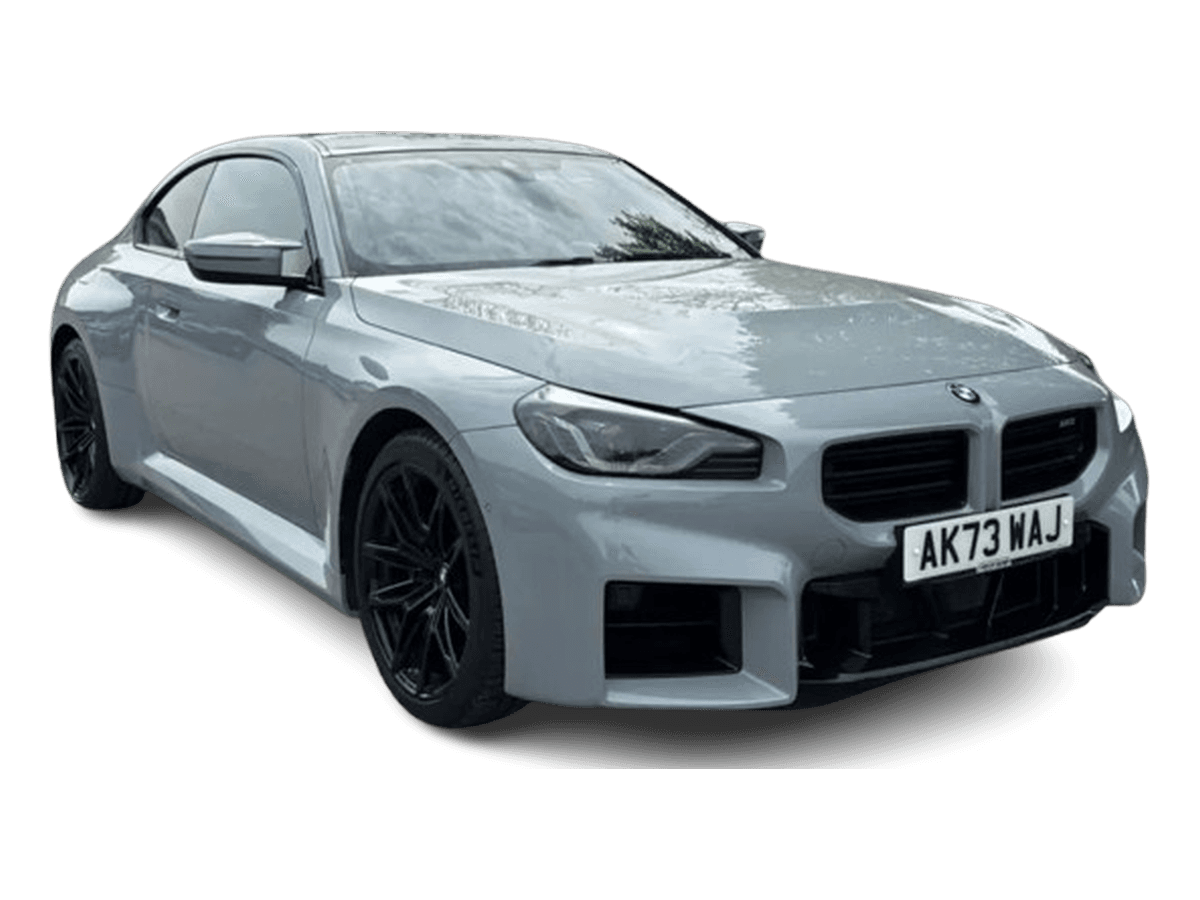

G87

460 bhp stock

M2 Configure Tuning

G80 / G81

503 bhp stock

M3 Configure Tuning

G80

M3 CS (G80)

550 bhp stock

M3 CS (G80) Configure Tuning

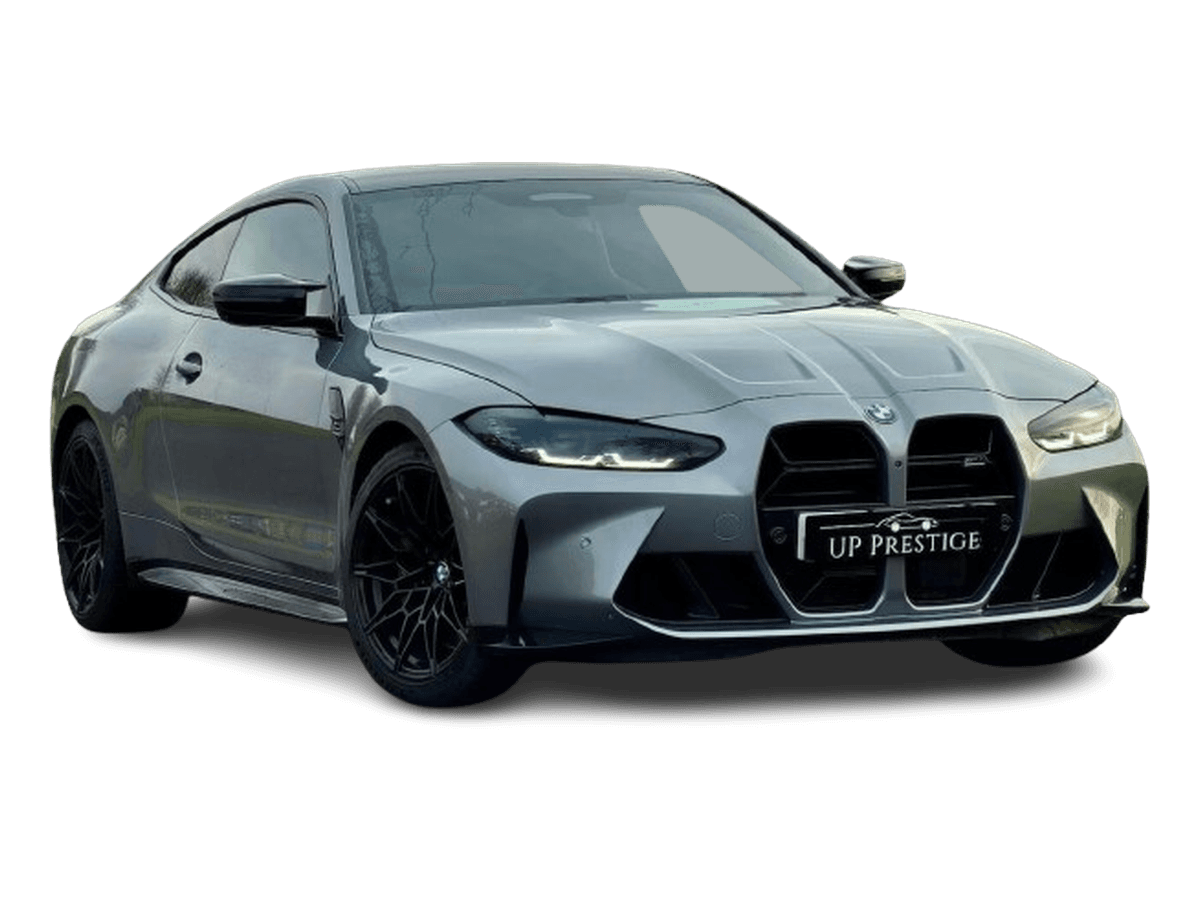

G82 / G83

503 bhp stock

M4 Configure Tuning

G82

M4 CS (G82)

550 bhp stock

M4 CS (G82) Configure Tuning

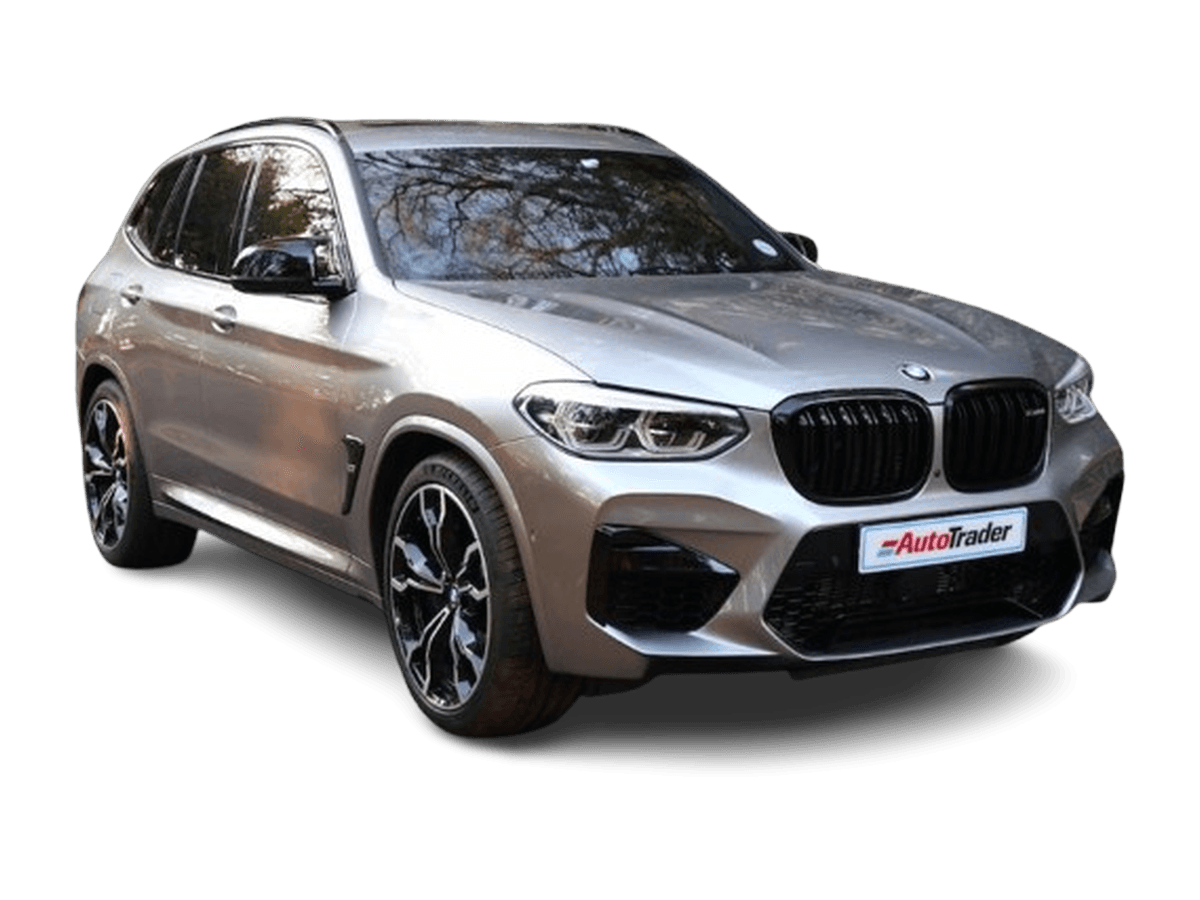

F97

X3 M

503 bhp stock

X3 M Configure Tuning

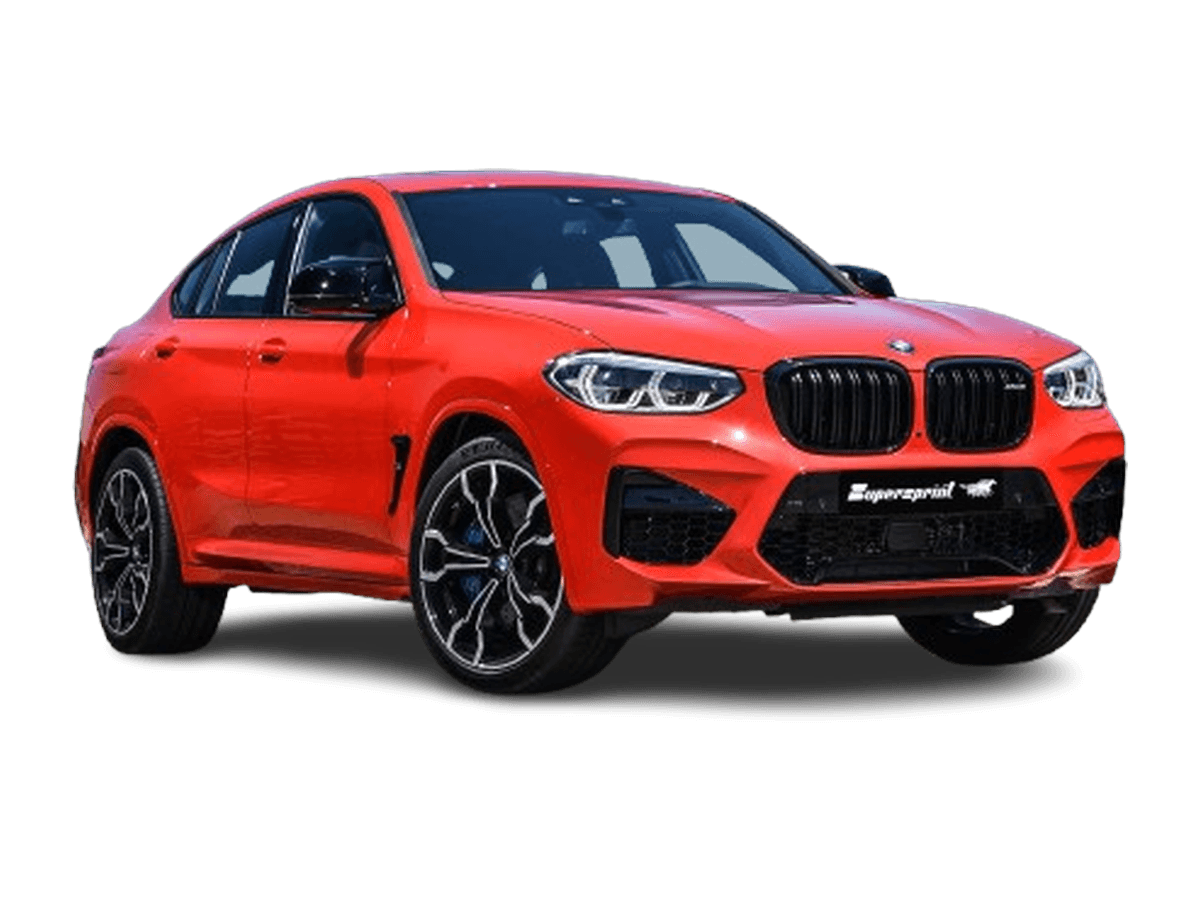

F98

X4 M

503 bhp stock

X4 M Configure Tuning

Engine guide

BMW S58 tuning explained

What the S58 is and why it responds to tuning

The S58 entered production in 2019, replacing the S55 as BMW M's flagship inline-six. The closed-deck block design means the cylinder bores are fully surrounded by the engine structure, which allows the engine to hold higher cylinder pressure without issue. The twin-scroll turbos are larger than the S55 units. The fuel system runs at higher pressure with upgraded injectors to match. In standard form, the engine produces 503 bhp in the G80 M3, G82 M4, F97 X3 M and F98 X4 M, and 460 bhp in the G87 M2. BMW calibrates it to clear emissions certification across every market it sells in simultaneously. That means the factory boost and fuelling targets are set well below what the hardware can hold. The headroom is there from the start.

Why a custom S58 map beats an off-the-shelf file

No two S58s run identically. Fuel quality varies by market and by pump. Intake and exhaust configuration affects the pressure environment the turbos work in. Ambient temperature shifts knock threshold. An OTS file sets fixed targets and cannot account for any of that. Samuel calibrates each S58 against your own datalogs, matching boost and fuelling to your actual car on your actual fuel. On E85 builds, the fuelling requirements are fundamentally different from pump fuel. A generic file cannot safely cover that. Custom calibration is the only way to do it properly.

Hardware path

Stage 1 is software only. No parts needed before the tune starts. Stage 2 requires a downpipe (OPF/GPF delete where legal for your market) and benefits from an upgraded intake and charge cooling. These open up the top end and allow the turbos to sustain boost further into the powerband. E85 builds add a flex-fuel kit and a dedicated ethanol map built around your blend. Beyond that, the S58 supports upgraded turbos for high-power builds. Those need a fully bespoke calibration built around the specific hardware. Samuel quotes each one individually.

Tune stages

S58 tuning stages: Stage 1, Stage 2 & Stage 3

Stage 1

~550–590 bhp

Software only on stock hardware. Sharper throttle, more mid-range, quicker shifts.

Stage 2

~600–640 bhp

Downpipe + intake/charge-cooling. Bigger top-end and sustained boost.

E85 flex

650+ bhp

Flex-fuel kit + dedicated ethanol map. The biggest gain per pound on the S58.

Big turbo

Quoted per build

Upgraded turbos + supporting fuel. Fully bespoke calibration.

Figures are indicative and depend on the exact model, fuel and supporting hardware. Every tune is calibrated individually — open the configurator for your car for the precise build and price.

FAQ

S58 tuning, common questions

A custom Stage 1 on a stock S58 on quality pump fuel typically lands around 550–590 bhp. That is up to 130 bhp over the standard G87 M2 and around 87 bhp over the M3, M4, X3 M and X4 M, with no hardware at all. Stage 2 with a downpipe sits around 600–640 bhp. E85 goes beyond that. Open the configurator for your car for the specific build and price.

No. Stage 1 is software only on stock hardware. No downpipe, no intake, no parts to source or fit before the tune. Hardware becomes relevant at Stage 2.

Bootmod3 and MHD both fully support the S58. Both deliver the map remotely: flashed via app at home, no workshop visit, no rolling road needed. Samuel will recommend the right platform for your build and goals.

Stage 1 is a custom remap on stock hardware, nothing else required. Stage 2 adds a downpipe and typically an intake and charge cooler, so the engine can breathe for the bigger numbers. The hardware is the step that unlocks Stage 2 gains. Once it is fitted, the calibration follows.
